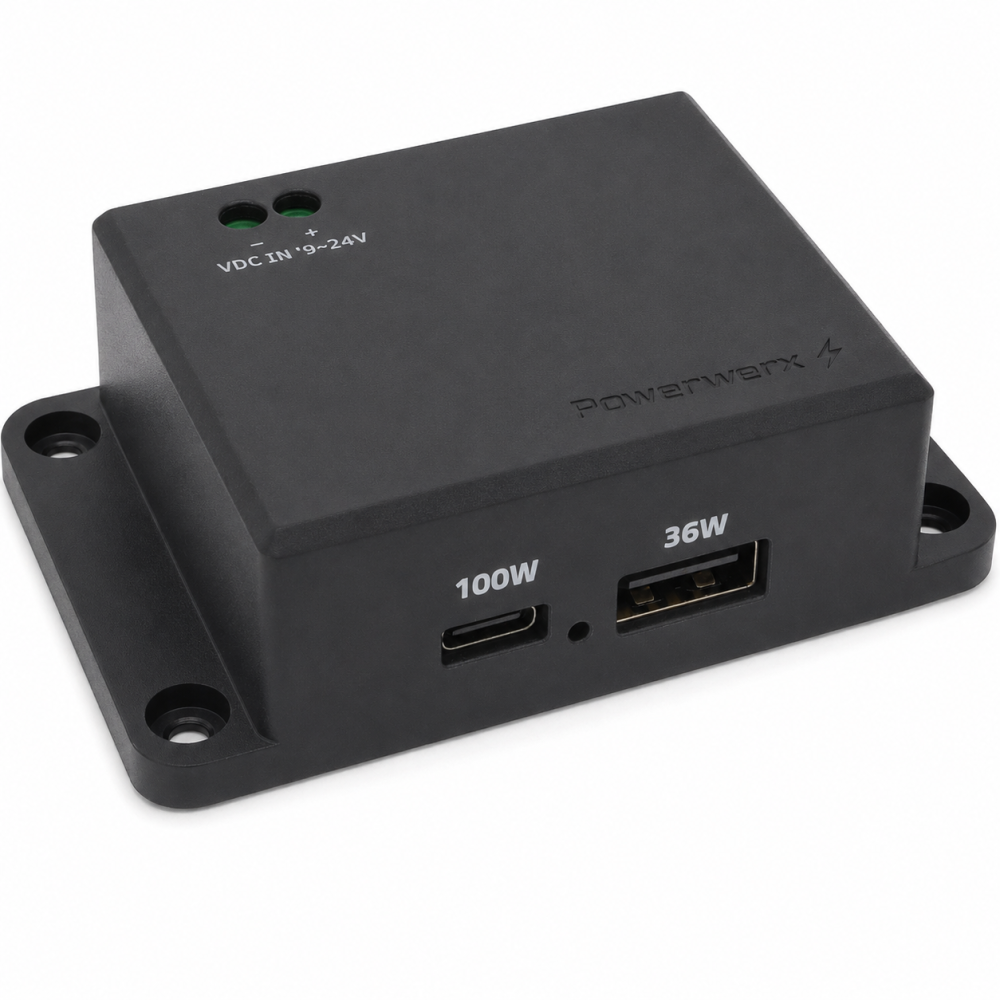

Powerwerx QuickCharge-100W Surface-Mount USB Charger

Add high-speed USB charging to a vehicle, RV, boat, work truck, emergency vehicle, overland build, or fixed 12/24V DC installation. The Powerwerx QuickCharge-100W combines a powerful USB-C Power Delivery port with a USB-A Quick Charge port in a compact, durable surface-mount housing.

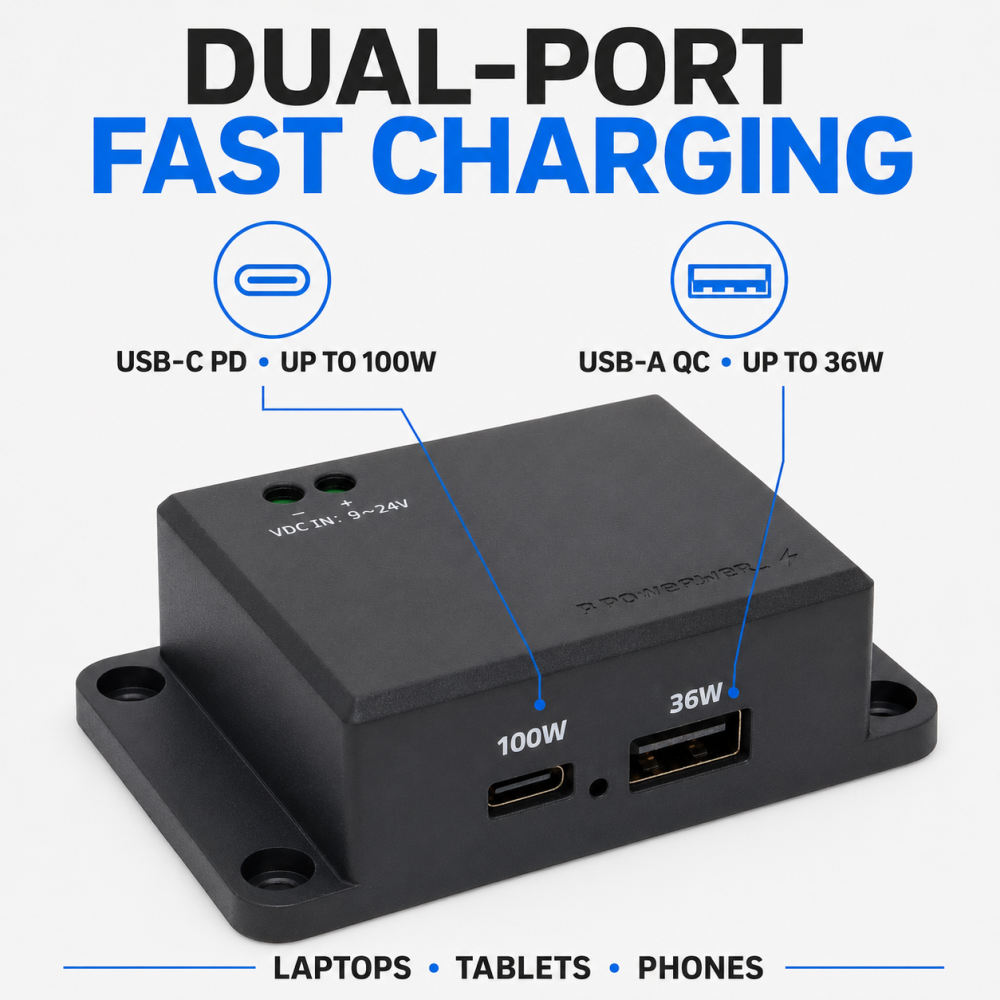

High-Power Dual-Port Charging

• USB-C output up to 100W with 12.5–26.0V DC input
• USB-C output up to 65W with 9.0–12.4V DC input
• USB-A QC 3.0 output up to 36W
• Charges compatible laptops, tablets, smartphones, and other USB devices

Broad Fast-Charging Compatibility

Supports USB Power Delivery PD 3.1 and PD 3.0 with PPS, Qualcomm Quick Charge, Samsung AFC, Huawei FCP/SCP/HVSCP, MediaTek Pump Express, BC1.2, Apple 2.4A, and legacy USB charging standards.

Compact Surface-Mount Installation

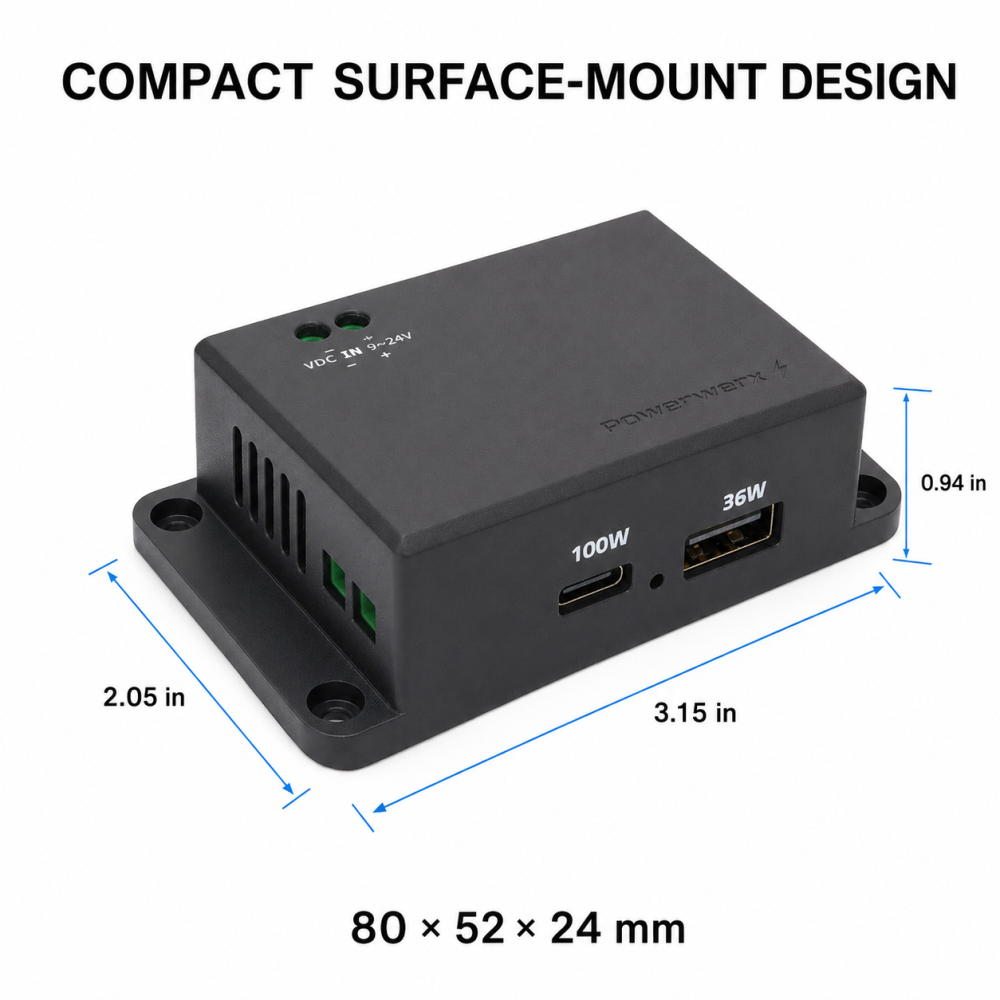

The charger measures only 3.15 × 2.05 × 0.94 inches. Rear screw terminals accept wire up to 12 AWG (3 mm²), allowing a clean installation on dashboards, panels, consoles, enclosures, and equipment.

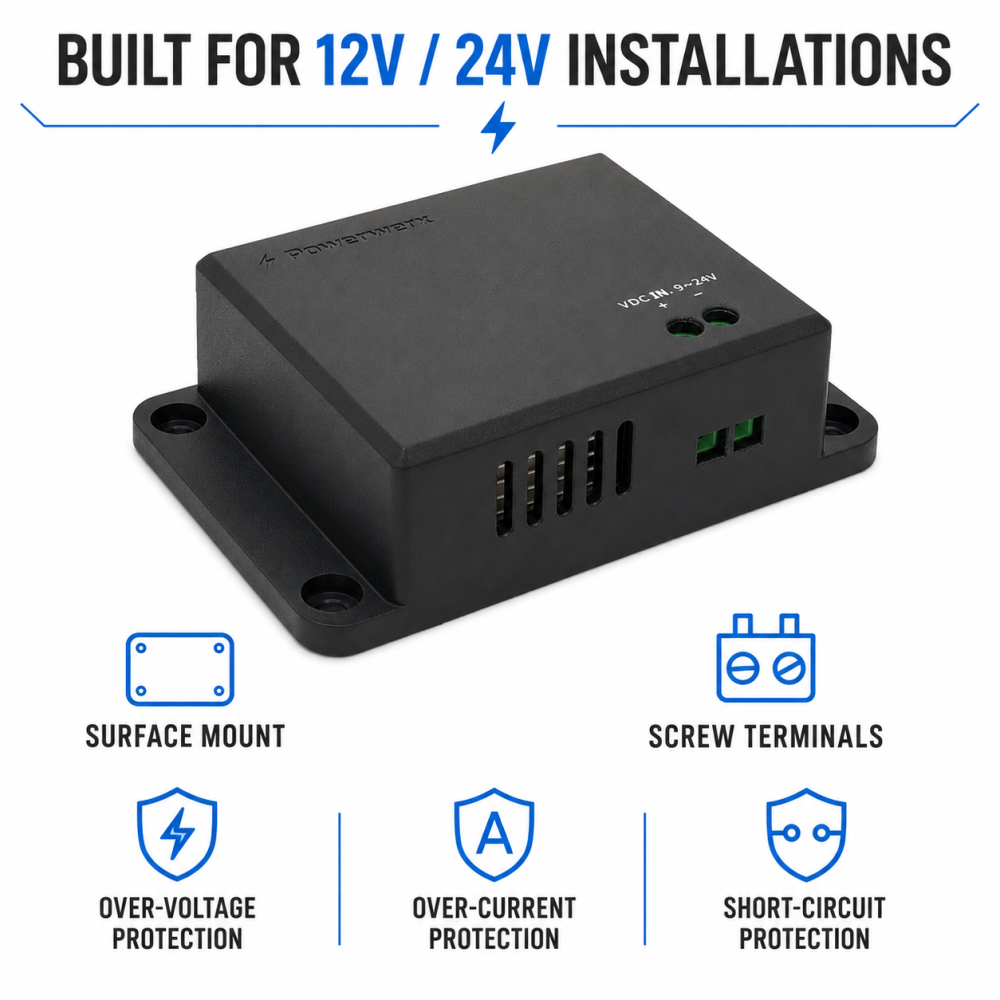

Built-In Electrical Protection

• Over-voltage protection
• Over-current protection
• Over-temperature protection
• Short-circuit protection
• Reverse-polarity protection

Specifications

Installation Note

Powerwerx recommends an IFH-12-02 inline blade fuse holder with a 15A fuse on the DC input. The included dust cover must be removed when installed in PanelPlate1, PanelPlate2, PanelPlate3, PanelPlate4, PanelPlate4W, PanelPlate6, PanelPlateSB2, or PanelPlateSB3.

Package includes: Powerwerx QuickCharge-100W surface-mount charger and dust cover. Charging cables, wiring, fuse holder, fuse, and mounting plates are sold separately unless specifically stated.
