Built-in ATO/ATC Blade Fuses for Easy, Flexible Circuit Protection

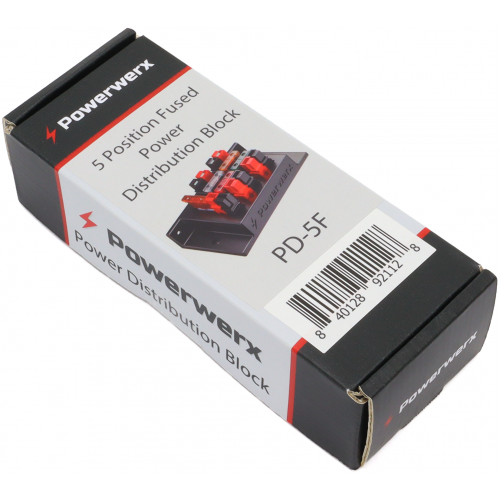

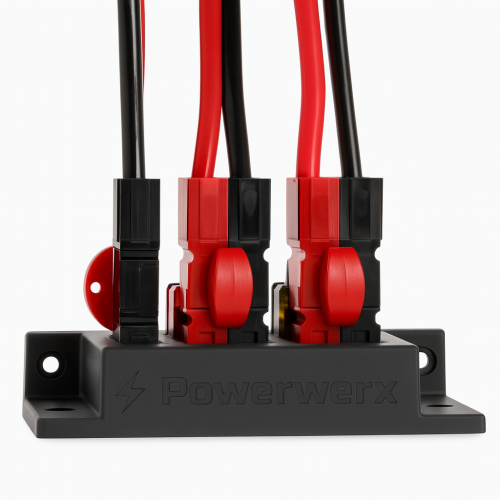

The Powerwerx PD-5F PowerHub is a 5-position fused distribution block engineered to simplify DC power management and safeguard connected devices. It uses ATO/ATC automotive blade fuses—a 40 A fuse on the input and four user-configurable output fuses (25 A, 10 A, 5 A, 1 A)—to protect each circuit from overloads and short circuits. Constructed with thick copper, the PD-5F minimizes voltage loss while supporting 40 A continuous at up to 32 V DC. Compact at 3.7″ × 2.0″ × 1.3″ and weighing just 0.153 lb, it includes mounting screws and versatile holes for horizontal or vertical installation. Compatible with all 15 A, 30 A, and 45 A Anderson Powerpole connectors and optional PCLIP retention clips, it is ideally suited for ham radio shacks, mobile rigs, permanent setups, or any environment requiring organized, secure power distribution.

• Features: 5-position fused block with ATO/ATC automotive blade fuses on every circuit and a 40 A input fuse for reliable, low-loss power distribution.
• Specifications: 5 Anderson Powerpole connectors; input fuse 40 A; output fuses 25 A, 10 A, 5 A, 1 A; continuous 40 A @ 32 VDC; dimensions 3.7″ × 2.0″ × 1.3″; weight 0.153 lb.
• Materials & Quality: Thick copper construction minimizes voltage drop and maximizes durability for long-term, heavy-duty performance.
• Usage & Benefits: Streamlines multi-device power management and protects sensitive equipment in ham radio shacks, mobile rigs, or fixed installations.
• Compatibility & Installation: Mates with all 15 A/30 A/45 A Anderson Powerpole connectors; includes mounting screws and holes for vertical or horizontal setups; PCLIP clips available separately.
